SEB07-3 Document & picture of access door & fasteners

Share Example Projects for the Benefit of All - Pictures Please! Attachments > Add Files > Place In Line> Submit, then JPG files will be in the Text of the Post.
Post Reply
User avatar
scottrsellers
Posts: 191
Joined: Tue Jun 11, 2024 1:53 pm
Aircraft Type: R182

SEB07-3 Document & picture of access door & fasteners

Post by scottrsellers »

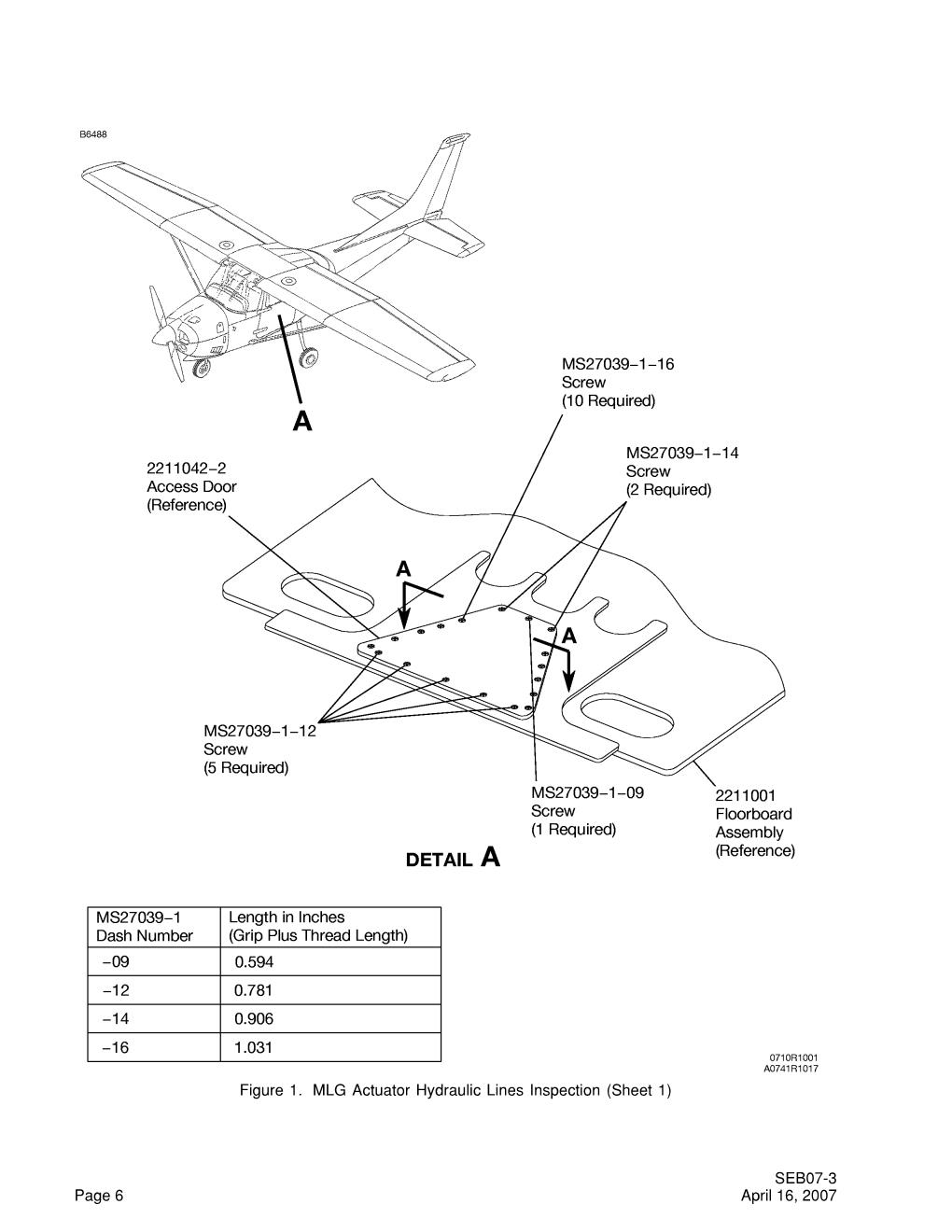

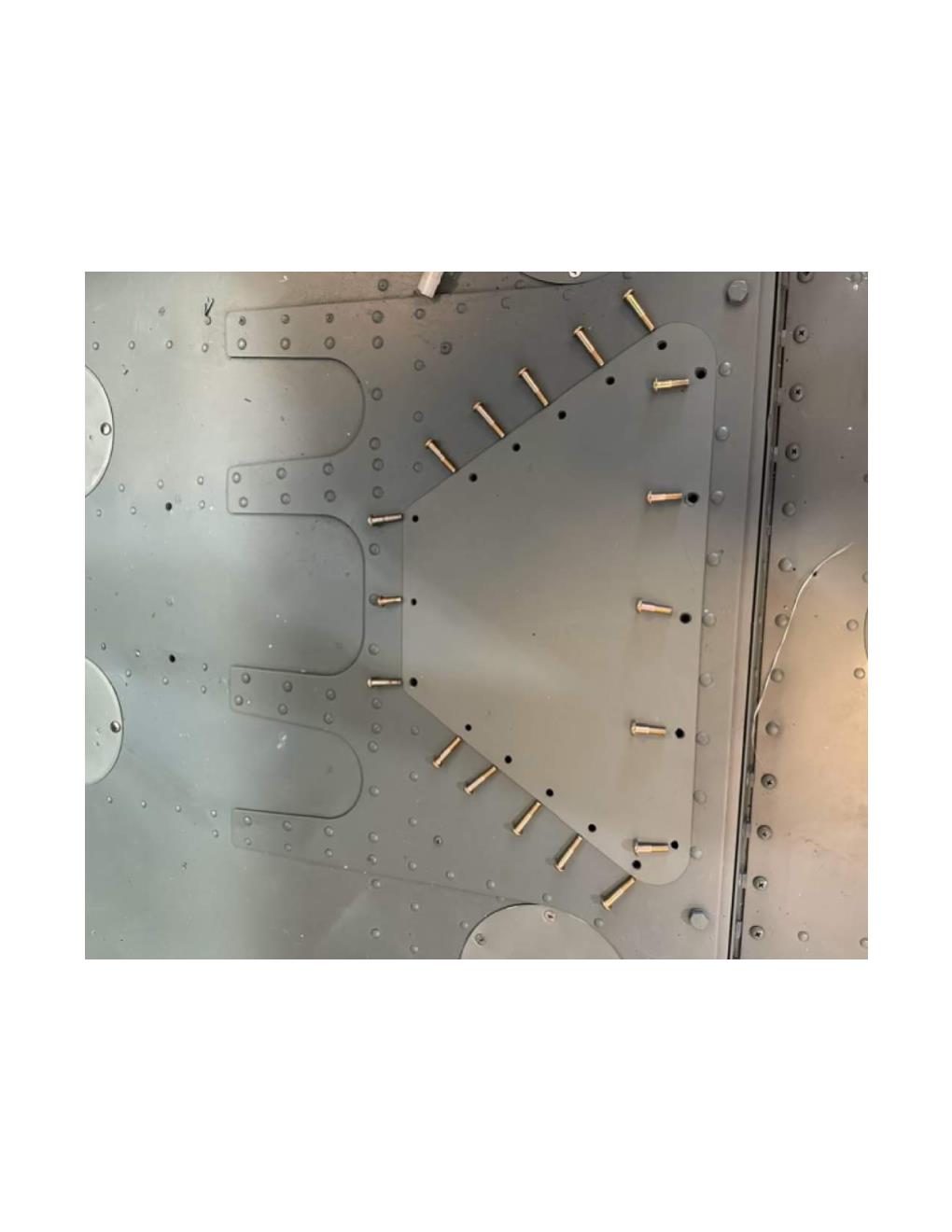

SEB07-3 screwlayout.jpg
SEB07-3 screwlayout.jpg (56.9 KiB) Viewed 567 times

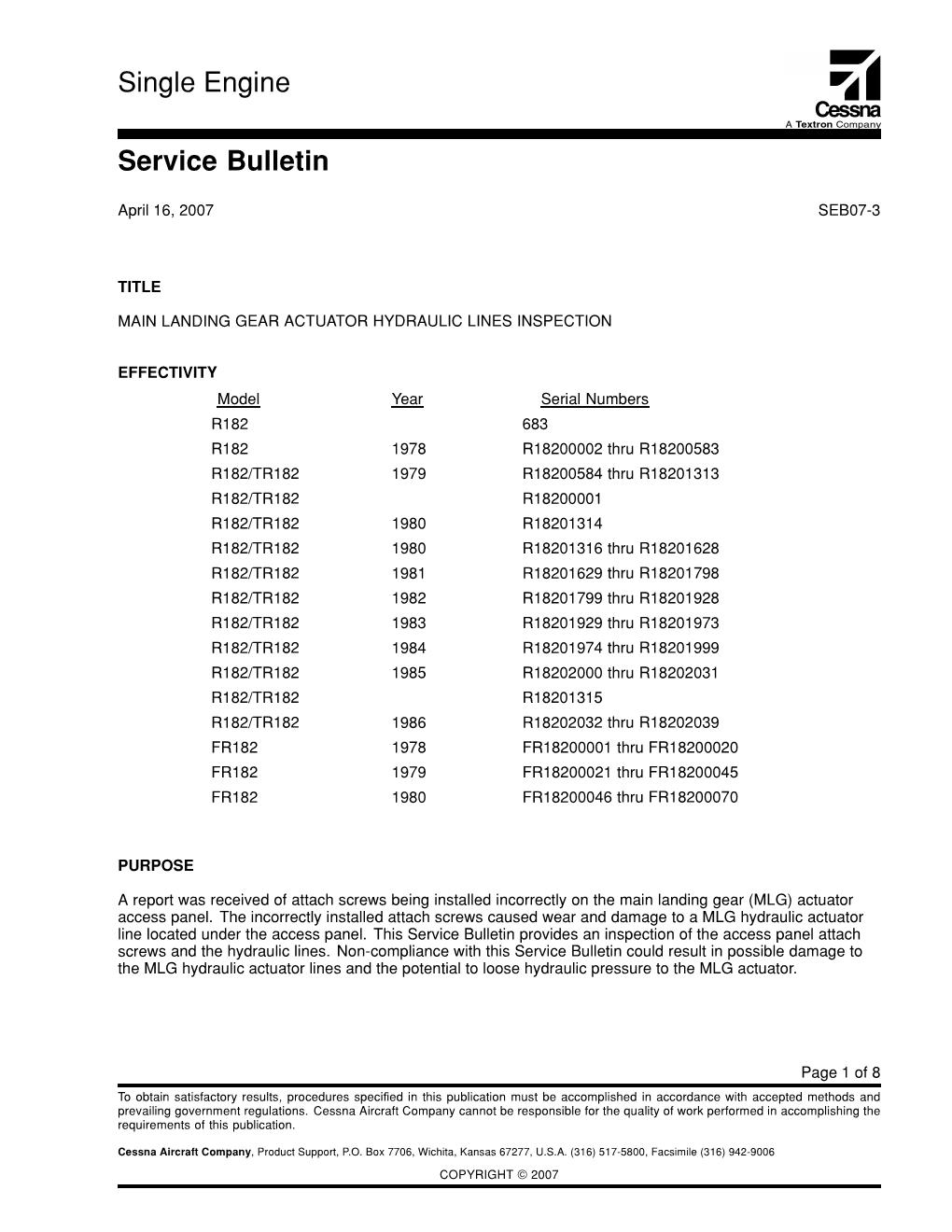

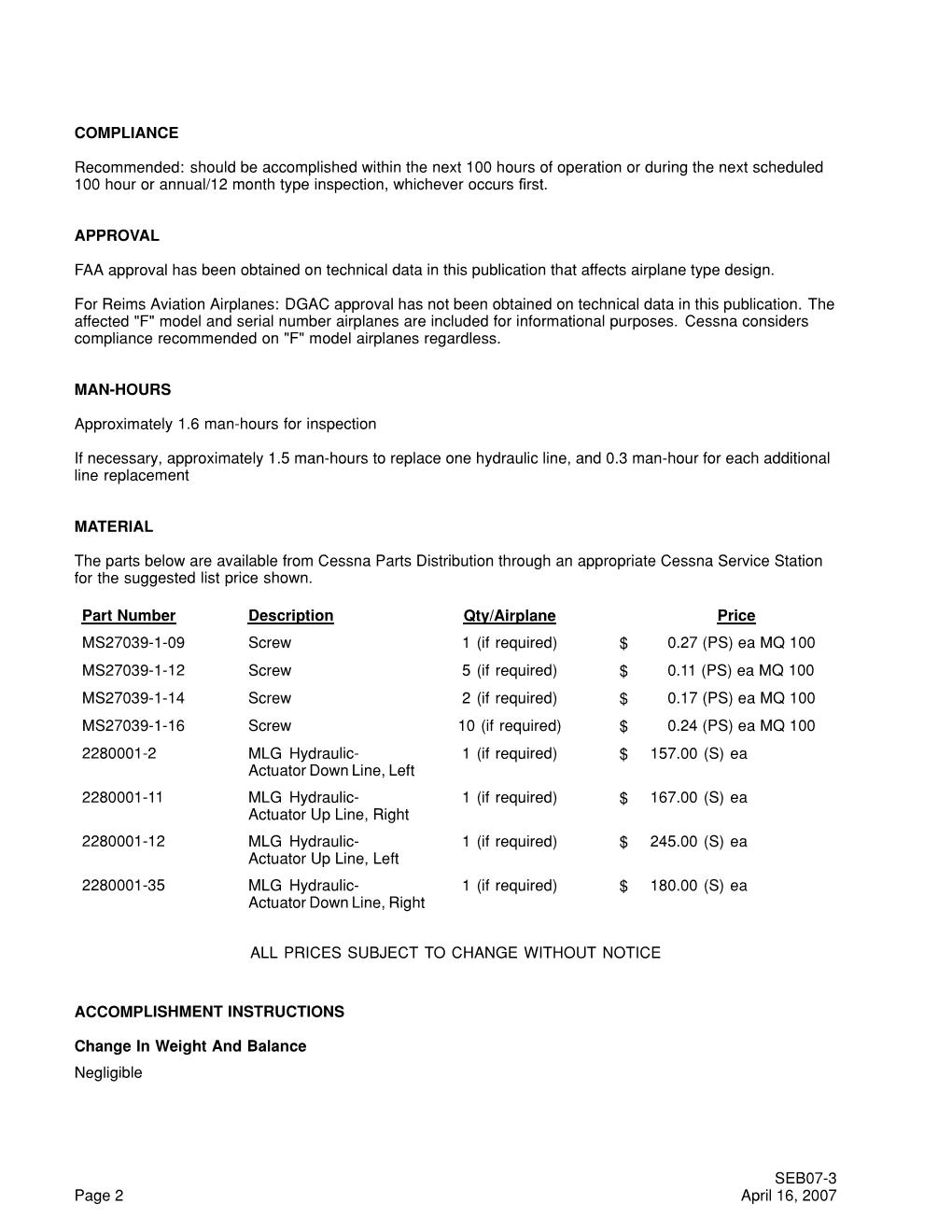

SEB07-3 Page 001.jpg
SEB07-3 Page 001.jpg (142.22 KiB) Viewed 567 times
SEB07-3 Page 002.jpg
SEB07-3 Page 002.jpg (129.81 KiB) Viewed 567 times

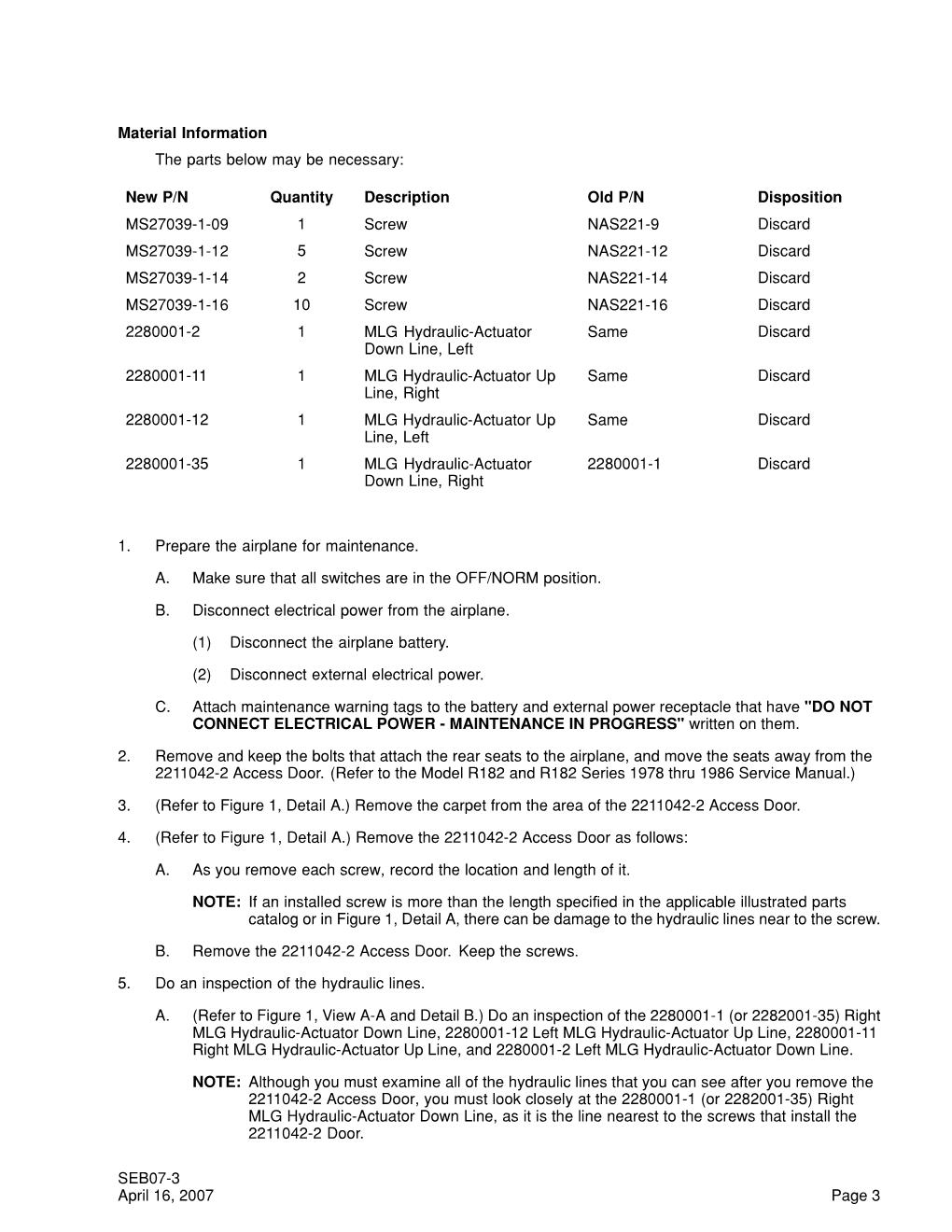

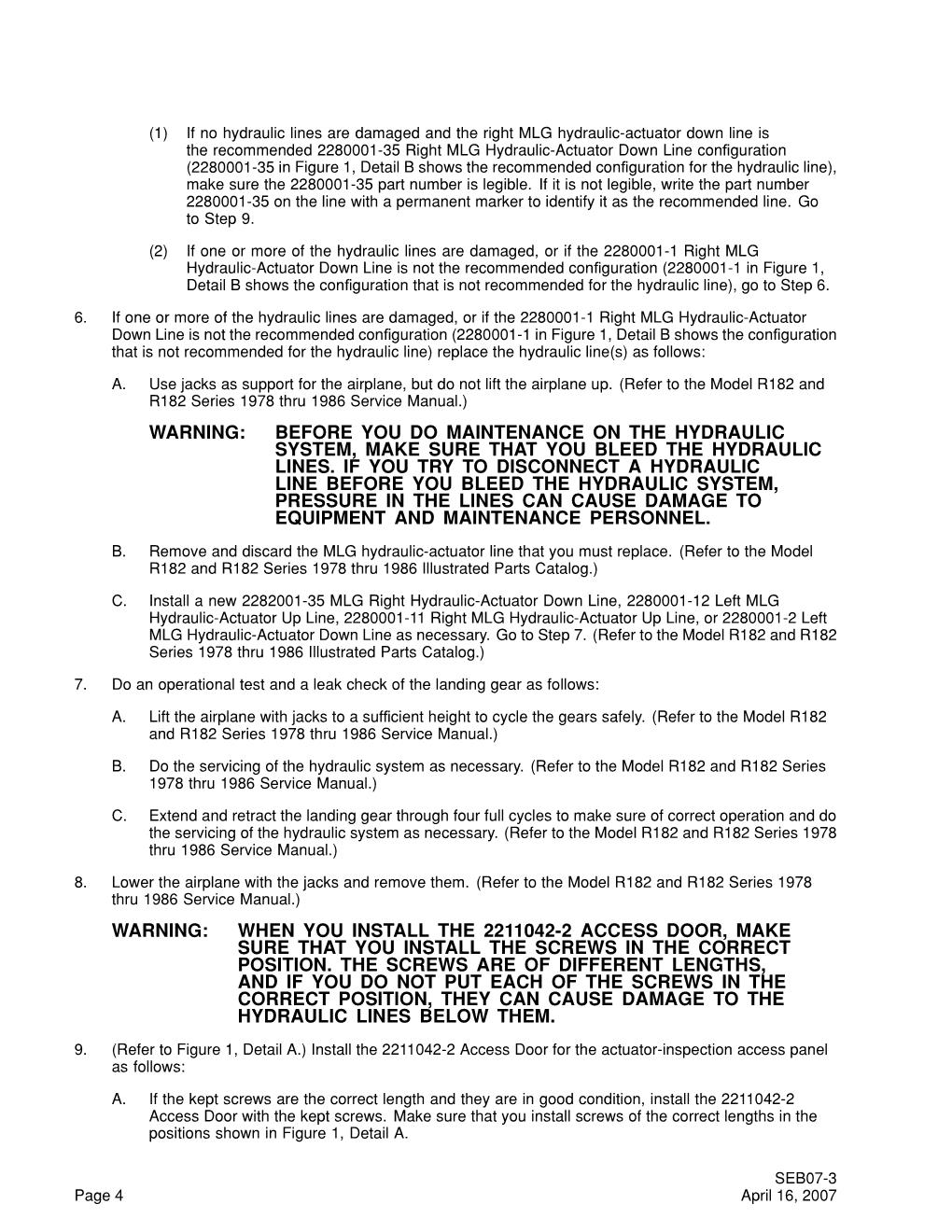

SEB07-3 Page 003.jpg
SEB07-3 Page 003.jpg (167.72 KiB) Viewed 567 times
SEB07-3 Page 004.jpg
SEB07-3 Page 004.jpg (248.23 KiB) Viewed 567 times

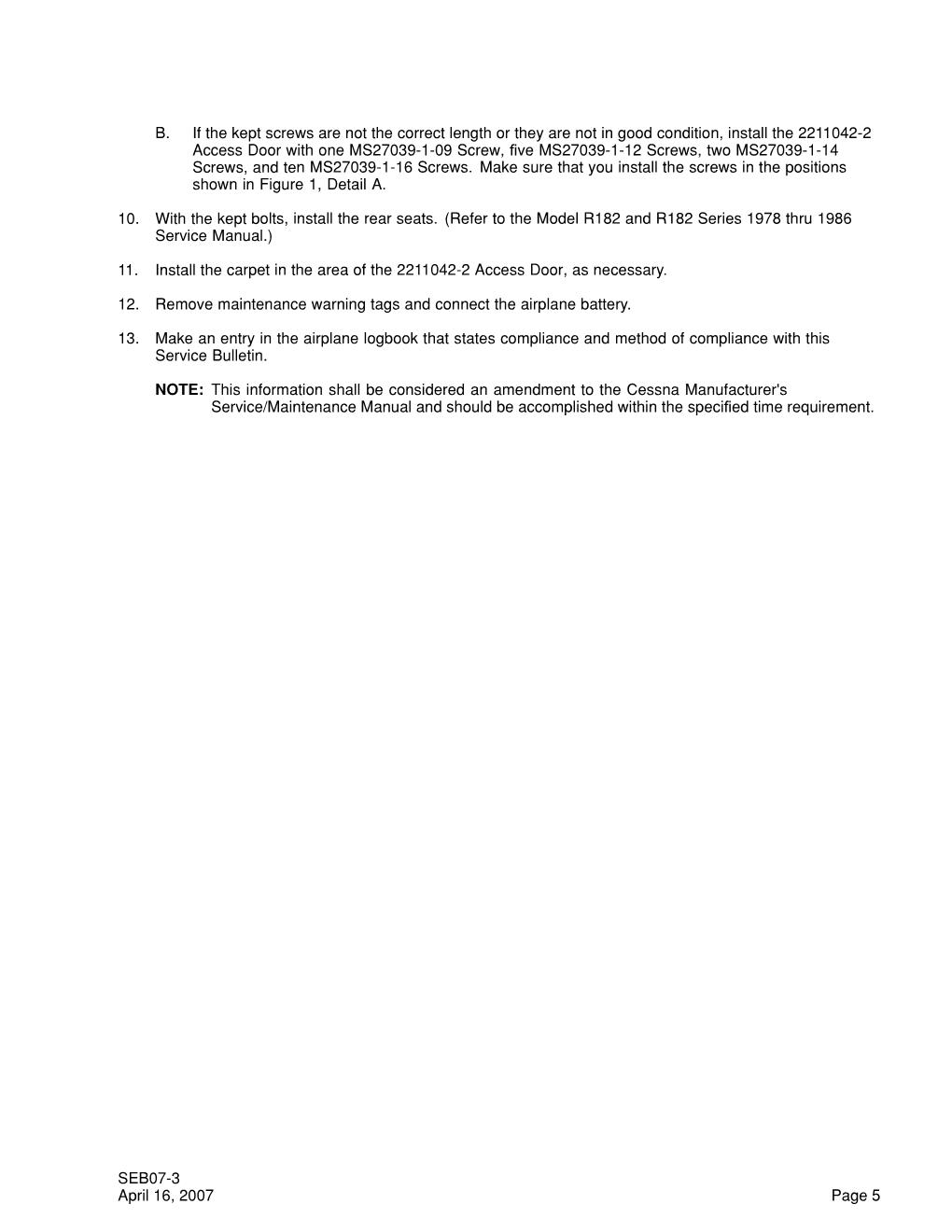

SEB07-3 Page 005.jpg
SEB07-3 Page 005.jpg (77.28 KiB) Viewed 567 times
SEB07-3 Page 006.jpg
SEB07-3 Page 006.jpg (96.28 KiB) Viewed 567 times

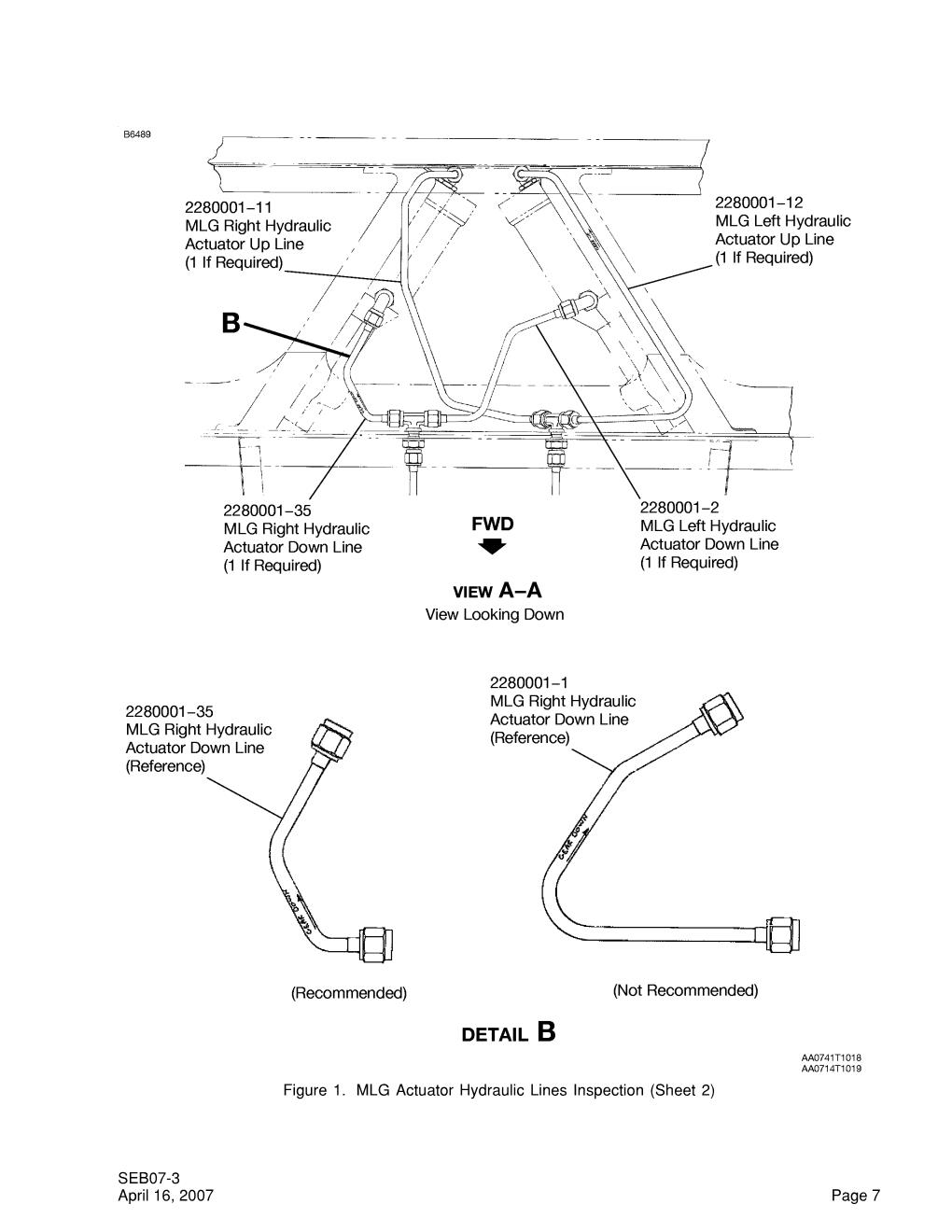

SEB07-3 Page 007.jpg
SEB07-3 Page 007.jpg (102.96 KiB) Viewed 567 times

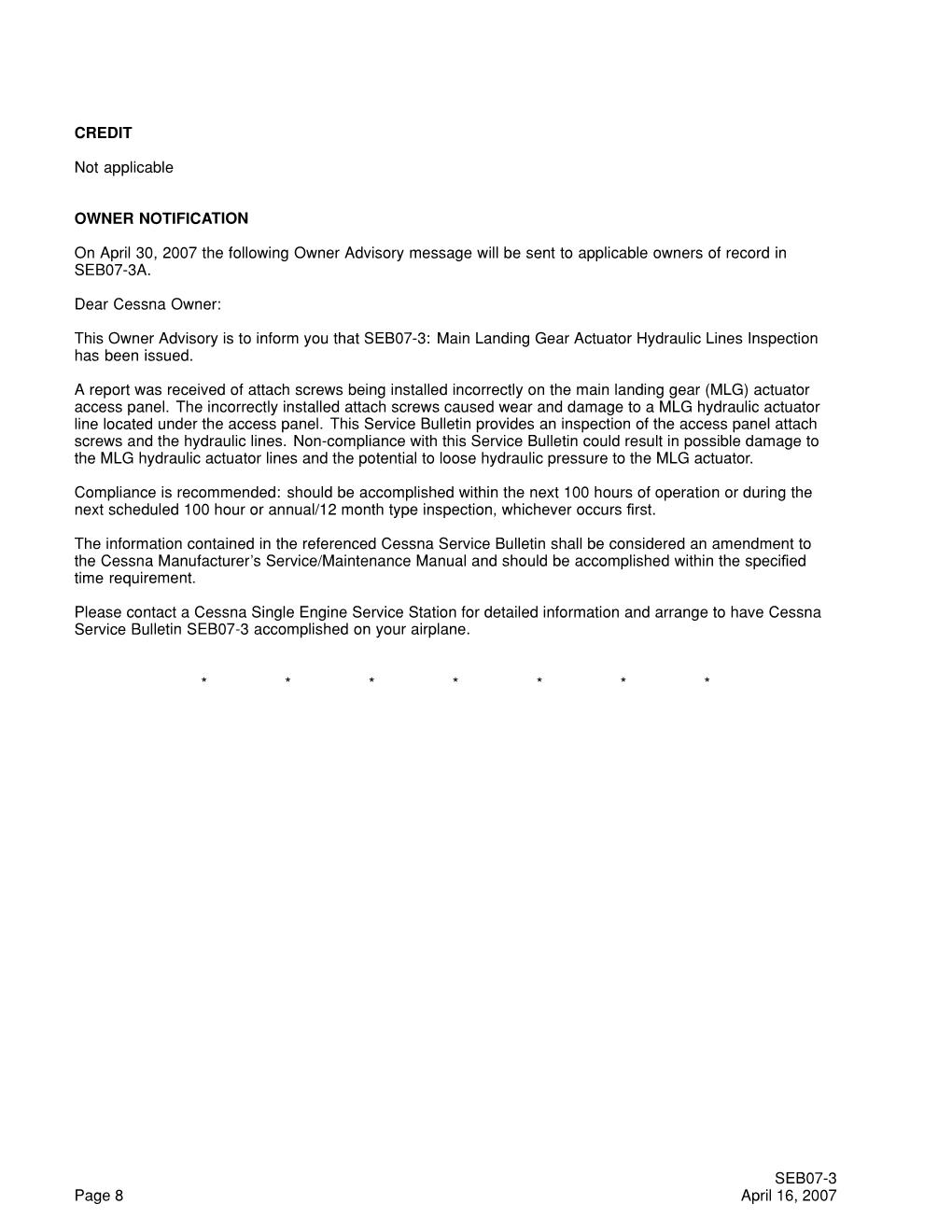

SEB07-3 Page 008.jpg
SEB07-3 Page 008.jpg (110.03 KiB) Viewed 567 times
SEB07-3 Page 009.jpg
SEB07-3 Page 009.jpg (21.36 KiB) Viewed 567 times
Attachments
SEB07-3 & Screw layout image.pdf
(129.09 KiB) Downloaded 50 times
Top
mpatt
Posts: 60
Joined: Tue Jun 11, 2024 1:51 pm
Location: Upland, CA KCCB
Aircraft Type: Choose a Type

Re: SEB07-3 Document & picture of access door & fasteners

Post by mpatt »

Field reports have shown that the MS27039-1-16 is too long, I can attest to this. Elected to us -14.
-Mike Pattison
